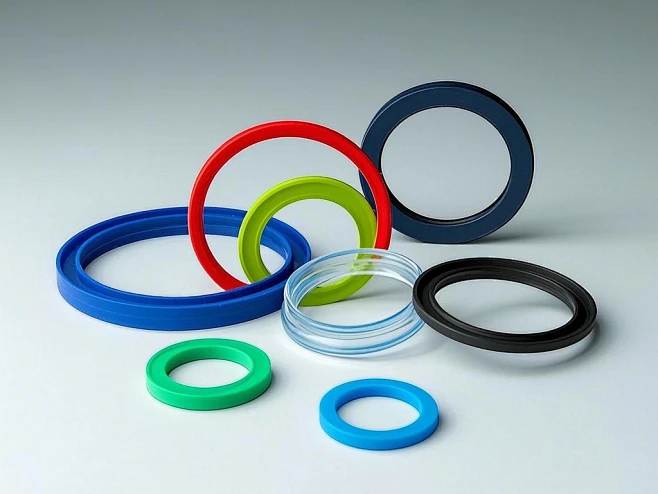

Silicone seal, which is also called silicone gasket, silicone sealing ring, is a flexible sealing component molded from silicone rubber like VMQ, LSR,RTV and FVMQ. It is installed between two joint surfaces to block leakage of gas, liquid, dust or moisture, and prevent external contaminants from entering assembly gaps.
Silicone is often chosen for sealing applications because it offers a unique combination of properties.
Silicone can work steadily between -60℃ and 200℃; special material can reach 300℃high temp or -80℃ ultra-low temp.
It naturally resists damage from UV sunlight, ozone, rain, and many chemicals without cracking or rotting.
Silicone material has high resilience and low compression set, enabling instant recovery after compression to maintain air and liquid tightness over long-term clamping.silicone material is soft enough to fit closely metals,plastics,glass and ceramics,can seal tiny gaps completely for waterproof,dustproof and airtight.Silicone material serves as a sealing component and also has noise reduction, shock absorption and buffering functions
It is an excellent electrical insulator, often used to protect sensitive electronic components from moisture and dust.
Silicone can work steadily between -60℃ and 200℃; special material can reach 300℃high temp or -80℃ ultra-low temp.
It naturally resists damage from UV sunlight, ozone, rain, and many chemicals without cracking or rotting.
Silicone material has high resilience and low compression set, enabling instant recovery after compression to maintain air and liquid tightness over long-term clamping.silicone material is soft enough to fit closely metals,plastics,glass and ceramics,can seal tiny gaps completely for waterproof,dustproof and airtight.Silicone material serves as a sealing component and also has noise reduction, shock absorption and buffering functions
It is an excellent electrical insulator, often used to protect sensitive electronic components from moisture and dust.
Competitive price: own factory and origin manufacturer
Superior Quality with advanced equipment and strict quality management.
Over 25 years’ development and manufacturer experience
Offer silicone, LSR and overmolding solution.
Certification with ISO9001, ISO14001, ISO13485 and FDA
Silicone sealing ring of the water cup is usually installed in the slot on the inside of the cup lid, achieving waterproof sealing by tightly fitting with the mouth.it can prevent the liquid in the cup from leaking when carried or poured. For insulated cups, it also plays a role in slowing down heat loss. Silicone material with FDA and LFGB certification,it is non-toxic and odorless, and can withstand wide temperature range between -60 ℃ to+200 ℃. Therefore, when poured with freshly boiled hot water, the seal ring will not deform or release harmful substances. Its elasticity also ensures that the cup lid can be repeatedly opened and closed to maintain a good sealing effect.
Silicone seal creates a flexible, durable, and highly adhesive protective barrier for display modules of various electronic devices. It is not an independent O ring like the water cup seal ring, but directly integrated into the structure of the screen component in the form of a precision gasket.These gaskets fill the tiny gaps between screen components, and form a physical barrier. silicone material can effectively prevent dust and foreign object debris (FOD) from entering fragile internal circuits in the air.The electronic screen frame is very thin and the gap may be uneven, and the silicone material with high compressibility and ultra-low hardness enable to adhere to various irregular gaps with minimal pressure, achieving reliable dust sealing without causing excessive stress on precision screens.
Silicone rings，especially platinum-cured medical grade LSR,become the mainstream sealing component for hemodialysis systems due to excellent biocompatibility,Multi-sterilization resistance,Chemical inertness & corrosion resistance.Our company produces and double PE bag packing these silicone seal in Class 100,000 clean workshop ,to avoid secondary pollution before installation,the mold surface of silicone seal is been polished to reduce surface roughness, inhibit protein adhesion and biofilm formation.
Compared with rubber or PVC materials, silicone is water-resistant, mildew proof, and has long-lasting elasticity, making it suitable for long-term use in damp bathroom environments. Silicone shower gaskets are the basic waterproof and sealing accessories of bathroom shower systems, relying on above advantages to solve shower room overflow, hardware joint leakage, and gap leakage problems.
The sample period for customized silicone seal rings is 7-15 days.
Standard silicone seals works from -60°C to 200°C. special material can withstand over 300℃.
Standard silicone seals will gradually age over long-term use, which may lead to hardening, brittleness, cracking under certain conditions, but silicone has far better aging resistance than rubber (NBR, NR).
At room temperature, dry, no chemical exposure,Silicone seals can keep soft and intact for 5–10 years or longer with barely obvious hardening/cracking.but in Harsh environments, the aging of silicone seal will accelerate rapidly.
(1)Wrong hardness unsuitable for pressure; seal extruded
(2)Surface scratch, crack or incomplete vulcanization of raw material
(3)Mating surface rough, dirty, with burrs or uneven gaps
(4)Insufficient compression or over-compression (over-squeezing accelerates aging)
(5)Material mismatched with working medium (e.g. VMQ used for oil)
